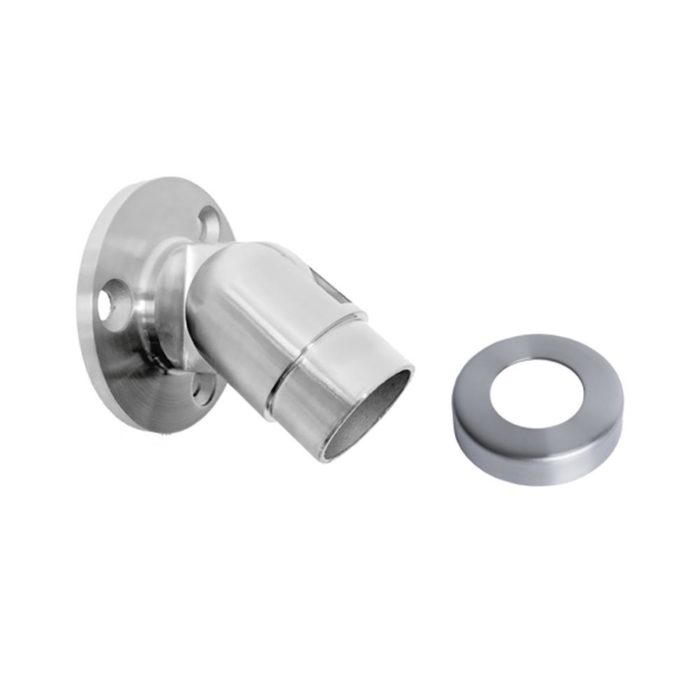

Adjustable Wall Mount Flange for 42.4 mm Round Rail
Check stock & pricing
In stock at our Houston, Dallas–Fort Worth and Austin showrooms. Ask for a parts quote, or have us install it.
Call: Houston (281) 209-0000 · DFW (817) 701-2006 · Austin (512) 973-8373
- Description
- Additional information
Description

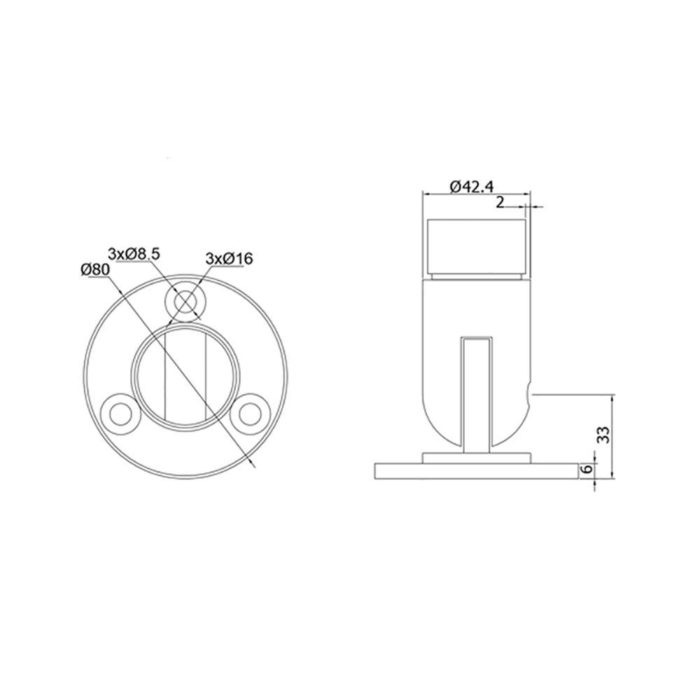

- AX10.008.141.A.SP
- Fits 42.4 mm (1-2/3 in.) diameter round tube handrail
- Used for when rail terminates to wall on a rake / angle application
- Adjustable Wall Mount Flange – Flange Cover Included
- 304 Stainless Steel – 240 grain satin polish
- Wood Screws Required – Sold Separately – AX00.091.830.A.SP
- Installation uses our adhesive – Part # AX00.100.525

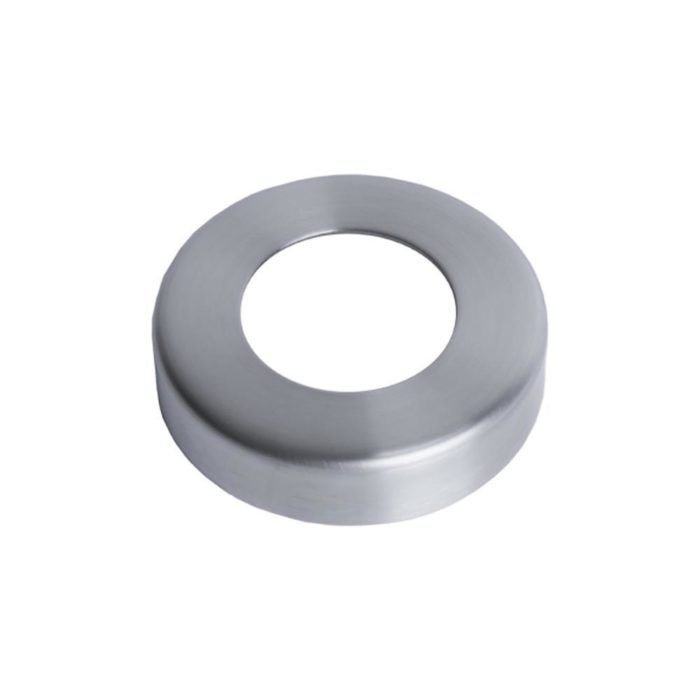

Specs for Replacement Flange Cover
- AX10.008.144.A.SP
- Inside Diameter – 42.9 mm
- Outside Diameter – 84.6 mm
- Height – 18.5 mm
- 304 Stainless Steel – 240 grain satin polish
Additional information
| Part | Adjustable Wall Mount Flange for 42.4 mm Round Rail, Replacement Flange Cover |
|---|
